| Model | |
| Model | WU14AJN |
| Platform | |
| Platform Capacity | 227kg |
| Platform Height | 13.7m |

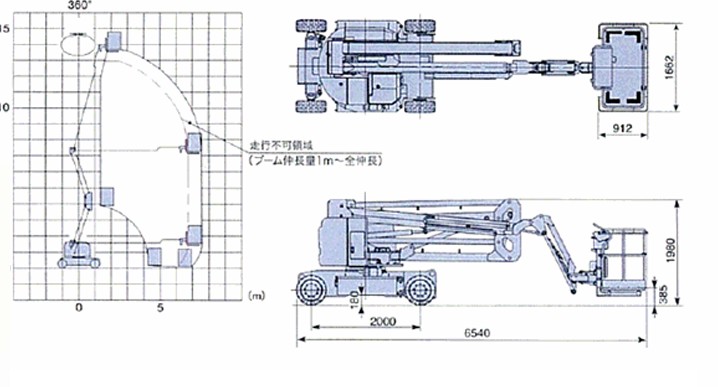

| Max. Working Radius | 7.7m |
| Inner Dimensions | 1.66m×0.91m×1.1m |
| Swinging Angle | 180° |
| Travel Devise | |
| Speed | 0-4.8km/h (High) 0-1.0km/h(Low) |
| Gradeability | 370degrees |
| Max. Angle of Jib | 17° |
| Power Source | |
| Input Voltage | Single phase AC230V |
| Battery Voltage | 48V |
| Battery Capacity | 300Ah (5hr) |
| Vehicle | |
| Vehicle Weight | 7500kg |
| Vehicle Dimention | 1.75m x 1.98m x 6.54m |
| Min. Turning Radius | 3.2m |
| Ground Pressure | 1800kpa(18.4kg/cm2) |
| Others | |
| Auto-centering steering, Battery capacity indicator, The belt for ground earth. | |
| Safety Devices | |
| Foot switch, Safety switch, Emergency stop switch, Horn, Travel speed regulation device, Hydrailic safety device, Electical safety device, Vehicle inclination warning alarm, Handrail, Lever guard, Emergency pump, Protection device for the battery cable, Hand pump for Emergency |
|
| Optional Devices | |
| 110V Power to the platform ( External power source will be needed.) Light for night work, Light for upper control panel, Head light, Yellow flash Beacon |
|
