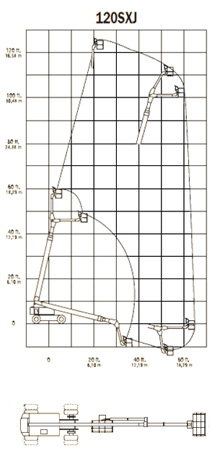

| Reach Specifications | |
| Platform Height | 36.58m |
| Horizontal Outreach | 18.29 m |
| Swing | 360° continuous |
| Platform Capacity | 230 kg |
| Platform Rotator | 180° Hydraulic |
| JlbPLUS (Range of articulation) | 3.35 m (+15, –75) |
| Dimension Data | |
| Platform Size | 0.91 x 2.44 m |
| Overall Width (Axies Retracted) Overall Width (Axies Extended) |
2.49 m 3.30 m |
| Tallswing (Axis Extended ) | 0.86 m |
| Stowed Height | 3.05 m |
| Stowed Length (working) | 15.95 m |
| Stowed Length (transport) | 10.95 m |
| Wheel Base | 3.05 m |
| Ground Clearance – Axie / Chassis | 37 cm |
| Gross Vehicle Weight | 19 732 kg |
| Max Ground Bearing Pressure | 10.5 kg/cm2 |
| Chassis | |
| Drive Speed | 4.43 km/h |
| Gradeability | 40% |
| Turning Radius (inside) Axies Retracted Axies Extended |
3.91 m 3.23 m |
| Turning Radius (outside) Axies Retracted Axies Extended |
5.28 m 5.74 m |
| Tire / Type | 445/65R x 22.5 Foam Filled |
| Power Source | |
| Diesel Engine | Deutz F4 912 70 hp (52 kw) |
| Fuel Tank Capacity | 98.4 L |
| Hydraulic Reservoir | 190 L |
| Auxiliary Power | 12v DC |
