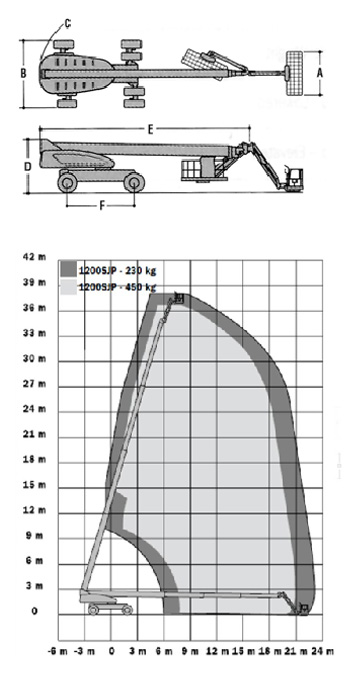

| Reach Specifications | |
| Platform Height | 41.15 m |
| Horizontal Reach | 24.38 m |
| Swing | 360° Continuous |
| Platform Capacity – Restricted | 454 kg |
| Platform Capacity – Unrestricted | 227 kg |
| Platform Rotator | 180° |
| JlbPLUS – Length Horizontal Motion Vertical Motion |
2.44 m 180° 130°(+75/-55) |
| Dimension Data | |
| Platform Size | 0.91 x 2.44 m |
| Overall Width (Axles Retracted) Overall Width (Axles Extended) |
2.49 m 3.81 m |
| Tallswing | 1.67 m |
| Stowed Height | 3.06 m |
| Stowed Length | 11.86 m |
| Wheelbase | 3.81 m |
| Ground Clearance – Axle / Chassis | 30 cm / 65 cm |
| Gross Vehicle Weight2 | 20299 kg |
| Chassis | |
| Max Ground Bearing Pressure* | 7.38kg/cm2 |
| Drive Speed | 5.2 mph |
| Gradeability | 45% |
| Turning Radius (Inside) Axles Retracted Axoes Extended |
4.39 m 2.44 m |
| Turning Radius (Outside) Axles Retracted Axles Extended |
6.86 m 5.89 m |
| Crab Steer Ration | 1:1 |
| Axle Osciiation | 30 cm |
| Tire / Type | 445/50D710 Foam Filled |
| Power Source | |
| Diesel Engine | Deutz BF4M 2011 87 hp (65 kw) |
| Fuel Tank Capacity | 117 L |
| Hydraulic Reservoir | 208 L |
| Auxiliary Power | 12v DC |
