| Specifications | ||

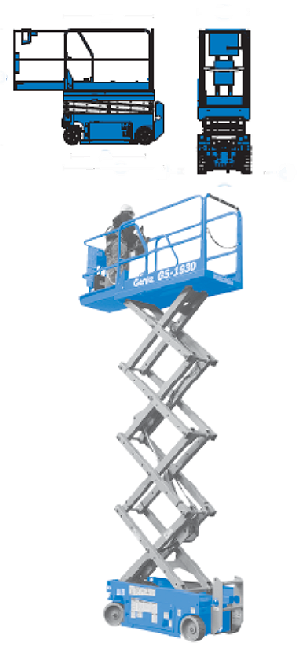

| Models | GS-1930 | GS-2032 |
| Measurement | Metric | Metric |
| Working Height Maximum * | 7.79 m | 8.1 m |
| Platform Height Maximum | 5.79 m | 6.10 m |
| Platform – Outside/ Inside | 1.63 m / 2.54 m | 2.26 m / 3.18 m |
| Slide-Out Platform Extension Deck | 0.91 m | 0.91 m |
| Platform Width – Outside | 0.74 m | 0.81 m |
| Guardrail Height : ANSI, CSA, AUS CE |
0.99 m 1.10 m |
0.99 m 1.10 m |
| Toeboard Height | 0.15 m | 0.15 m |
| Height – Stowed : Fixed Rails Folding Guardrails Rails Folder |
2.00 m 2.11 m 1.75 m |
2.03 m 2.13 m 1.78 m |
| Length – Stowed Length – Stowed Extended |
1.83 m 2.74 m |
2.44 m 3.33 m |
| Width | 0.76 m | 0.81 m |
| Wheelbase | 1.32 m | 1.85 m |
| Ground Clearance – Center | 0.06 m | 0.09 m |
| Ground Clearance – With Pothole Guards Deployed | 0.02 m | 0.02 m |
| Productivity | ||
| Lift Capacity Lift capacity – Extension Deck |
227 kg 113 kg |
363 kg 113 kg |
| Drive speed – Stowed Drive speed – Raised |
4.0 km/h 0.8 km/h |
3.5 km/h 0.8 km/h |
| Gradeability – Stowed ** | 30% | 30% |
| Turning Radius – Inside Turning Radius – Outside |
zero 1.55 m |
zero 2.13 m |
| Raise/ Lower Speed | 16/25 sec | 30/34 sec |
| Controls | Proportional | Proportional |
| Drive | Dual Front Wheel | Dual Front Wheel |
| Multiple Disc Brakes | Dual Rear Wheel | Dual Rear Wheel |
| Tires – Solid Non-Marking | 30 x 11 x 20 cm | 38 x 13 x 28 cm |
| Power | ||
| Power Source | 24 V Dc (four 6 v 225 Ah batteries) |
24 V Dc
(four 6 v 225 Ah batteries) |
| Hydraulic System Capacity | 14.2 L | 14.2 L |
| Weight *** | ||
| ANSI, CSA | 1226 kg | 1621 kg |
| CE Indor | 1498 kg | 1825 kg |
| Standard Compliance | ANSI A92.6, CSA B354-2, CE Compliance, AS 1418.10, PB-10-611-03 | |
