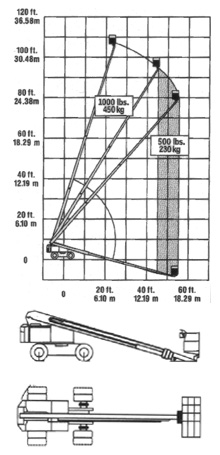

| Reach Specifications | |
| Platform Height | 33.53m |
| Horizontal Outreach | 18.29 m |
| Swing | 360° continuous |
| Platform Capacity – Restricted | 450 kg |
| Platform Capacity – Unrestricted | 230 kg |
| Platform Rotator | 180° Hydraulic |
| Dimension Data | |
| Platform Size | 0.91 x 2.44 m |
| Overall Width (Axies Retracted) Overall Width (Axies Extended) |
2.59 m 3.30 m |
| Tallswing (Axis Extended ) | 0.86 m |
| Stowed Height | 3 m |
| Stowed Length (working) | 11.76 m |
| Wheel Base | 3.35 m |
| Ground Clearance | 28 cm |
| Gross Vehicle Weight | 18 829 kg |
| Max Ground Bearing Pressure | 12.4 kg/cm2 |
| Chassis | |
| Drive Speed | 4.5 km/h |
| Gradeability | 20% |
| Turning Radius (inside) Axies Retracted Axies Extended |
4.34 m 4.50 m |
| Turning Radius (outside) Axies Retracted Axies Extended |
6.96 m 7.32 m |
| Tire / Type | 385/65R22.5 Foam Filled |
| Power Source | |
| Diesel Engine | Deutz F4 912 70 hp (52 kw) |
| Fuel Tank Capacity | 98 L |
| Hydraulic Reservoir | 208 L |
| Auxiliary Power | 12v DC |
