Spiderlift L 265

(A standard in every rental fleet)

LEGUAN 265 sets a new benchmark for efficiency and performance in its class. With a working height of 26.5 m, a maximum outreach of 13.6 m, and an up-and-over reach of over 10 m, it provides exceptional access for professionals
across industries.

Engineered for versatility, the Leguan 265 features a lightweight design and a compact length, ensuring effortless manoeuvrability in confined spaces. Its rugged track system, unrivalled ground clearance, and the market’s lowest centre of gravity provide exceptional stability and mobility, even in the most demanding environments, such as tree care and construction.

Speed and efficiency are at the heart of the Leguan 265. As the fastest 27-meter spider lift in the world, it takes just 1 minute and 35 seconds to fully extend the booms to maximum working height. This unparalleled speed allows operators to complete more projects in less time, driving greater productivity and profitability.

We reserve the right to make technical alterations.



Model 265
Max. lift capacity 250 kg (2 persons)
Max. working height 26.5 m
 Max. platform height 24.5 m

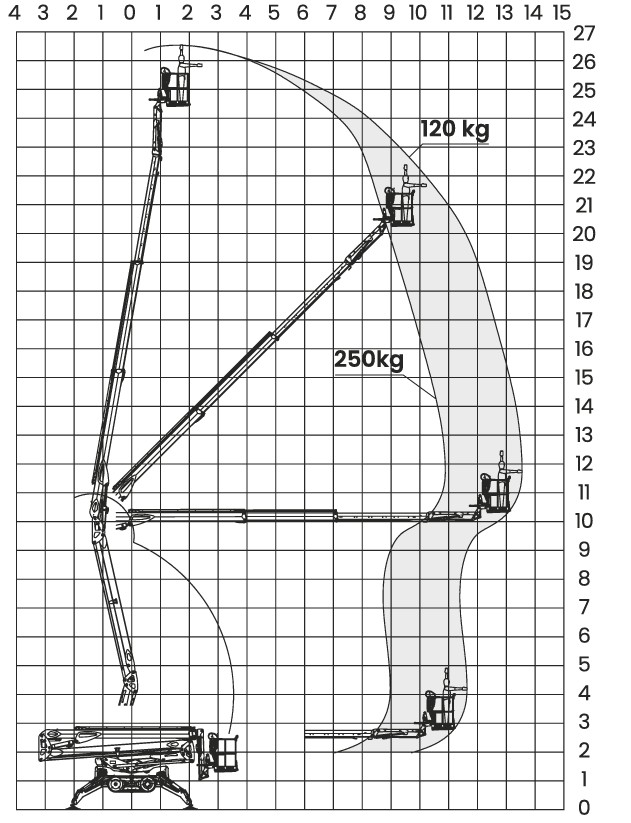

Max. side reach 10.9 m (250 kg) –
13.6 m (120 kg)

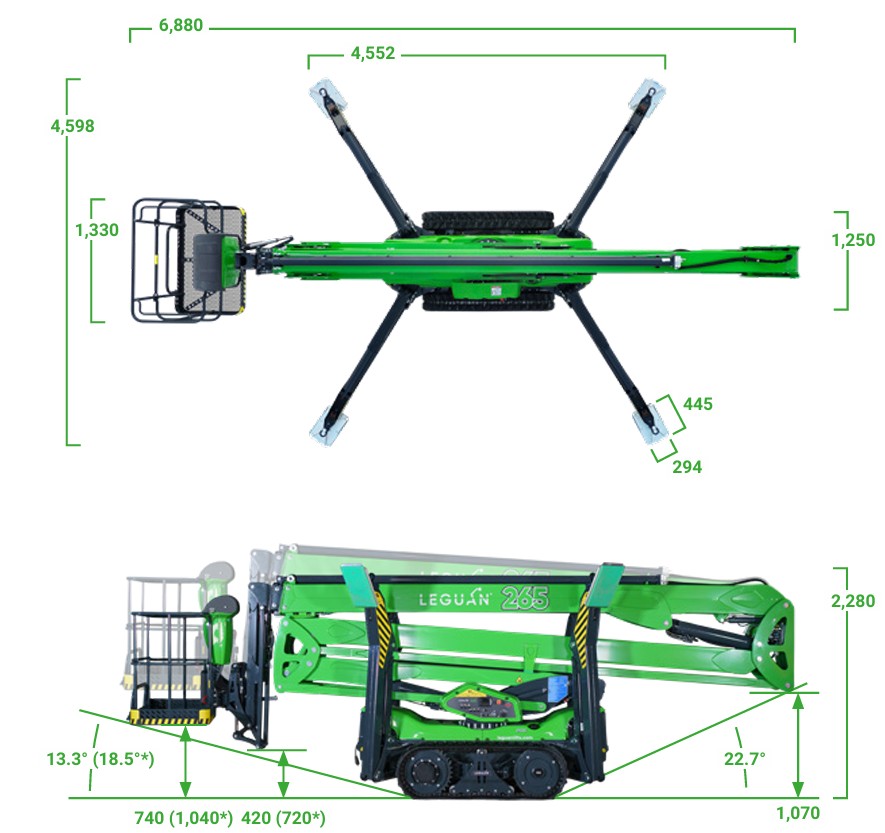

Transport dimensions, L x W x H  6.88 x 1.33 x 2.28 m
Platform dimensions 1.33 x 0.75 m
Rotation of the platform 110º (±55º)
Slewing 440º
Gradeability 45 % (25º)
Dimensions w/o platform, L x W 6.24 x 1.25 m
Minimum outrigger
support dimensions
4.60 x 4.55 m
Required space for
outrigger operation
 4.86 x 4.71 m
Max. slope for outriggers 23 % (13º)
Weight  3,920 kg
Engine Kubota 21 hp diesel or
230 V / 2.2 kW electric
Drive system: hydraulic tracks
Max drive speed  3.1 km/h



Standard features

  • Leguan EDX
  • 21 hp Kubota diesel engine + 230 V electric motor
  • 230 V and USB power outlets on platform
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home / back to work function
  • JIB-boom with 120-degree operating range
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Intuitive joystick control
  • Elevated driving position (EDP)

Optional features

  • Remote control for driving and outriggers
  • LED spotlights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Custom colour
