Spiderlift L 195

(A standard in every rental fleet)

LEGUAN 195  is the fastest lift to set up on the market, with unrivalled boom speeds that take the operator to maximum working height in just 55 seconds. Its advanced boom design ensures impressive side reach, even at greater heights,
while the intuitive joystick control offers seamless, precise movements, allowing for easy operation in any situation.
A shielded boom structure protects the spider lift’s key components from external damage, making it the perfect choice for demanding jobs such as arboriculture and construction work. Whether navigating tight spaces or tackling complex tasks at height, the Leguan 195 offers performance, reliability, and safety every time

We reserve the right to make technical alterations.



Model 195
Max. lift capacity 250 kg (2 persons)
Max. working height 19.7 m
 Max. platform height 17.7 m

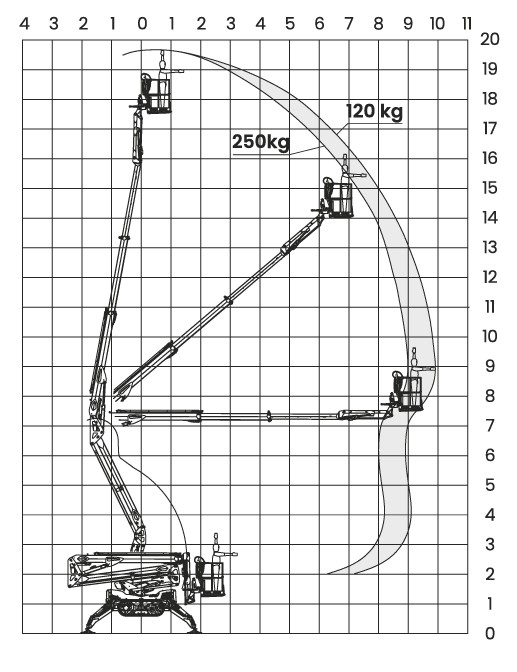

Max. side reach 9.0 m (250 kg) –
9.9 m (120 kg)

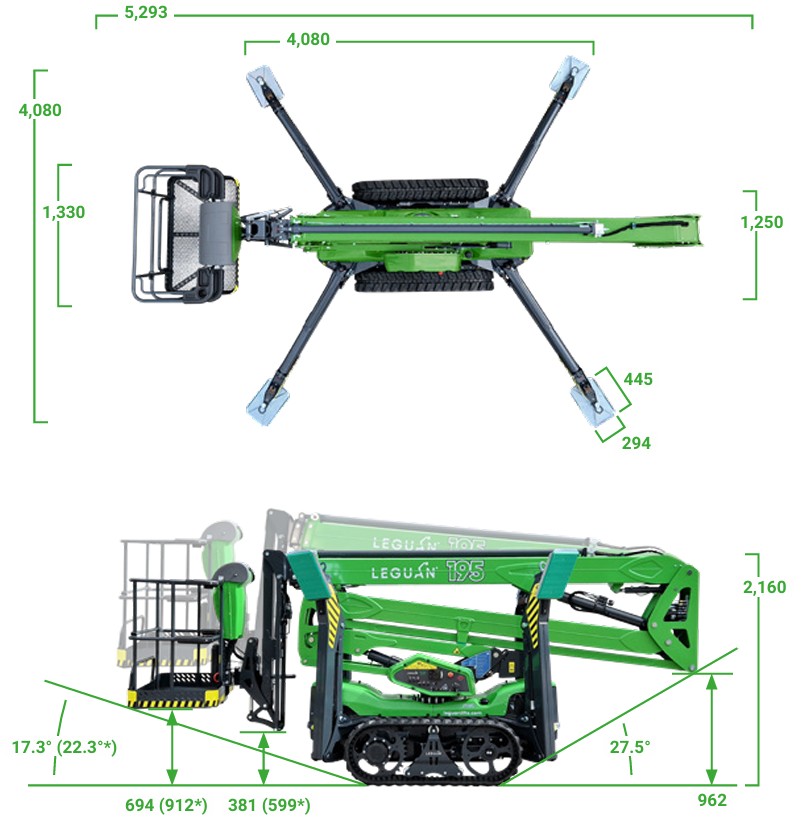

Transport dimensions, L x W x H 5.29 x 1.33 x 2.16 m
Platform dimensions 1.33 x 0.75 m
Rotation of the platform 110º (±55º)
Slewing 440º
Gradeability 45 % (25º)
Dimensions w/o platform, L x W 4.62 x 1.25 m
Minimum outrigger
support dimensions
4.08 x 4.08 m
Required space for
outrigger operation
4.38 x 4.27 m
Max. slope for outriggers 25 % (14º)
Weight 2,700 kg
Engine Kubota 21 hp diesel or
230 V / 2.2 kW electric
Drive system: hydraulic tracks
Max drive speed  3.1 km/h



Standard features

  • Leguan EDX
  • 21 hp Kubota diesel engine + 230 V electric motor
  • 230 V and USB power outlets on platform
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home / back to work function
  • JIB-boom with 120-degree operating range
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Intuitive joystick control
  • Elevated driving position (EDP)

Optional features

  • Remote control for driving and outriggers
  • LED spotlights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Custom colour
