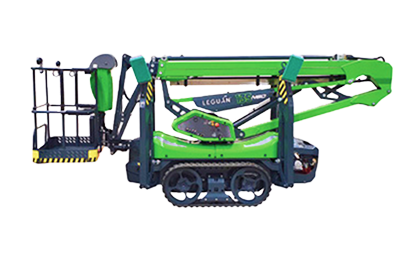

Spiderlift L 135 Neo

(A standard in every rental fleet)

135 NEO represents new generation of spider lifts combining easy-to-use interface, heavy lifting capacity, and efficiency-enhancing technology. The state-of-the-art joystick control allows simultaneous use of multiple boom movements with just one hand. Setting up or finishing the operation is efficient with the help of the smart automatic levelling function and the home function that brings booms automatically back to transport position.

Transitioning the Leguan 135 NEO through tight entrances is easy due to smooth drive control and small width of the spider lift. The new innovative boom structure helps the operator to maintain distance to the walls and the unparalleled user interface makes controlling the spider lift easier than ever before. The Leguan 135 NEO is a great fit for rental use and all kinds of facility maintenance and installation work both indoors and outdoors

We reserve the right to make technical alterations.

Model 135 Neo

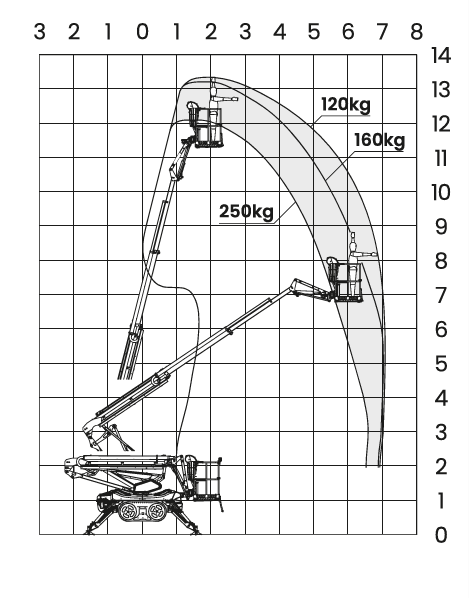

Maximum working height 13.40 m
Max outreach 6.6 m
Platform height 11.40 m

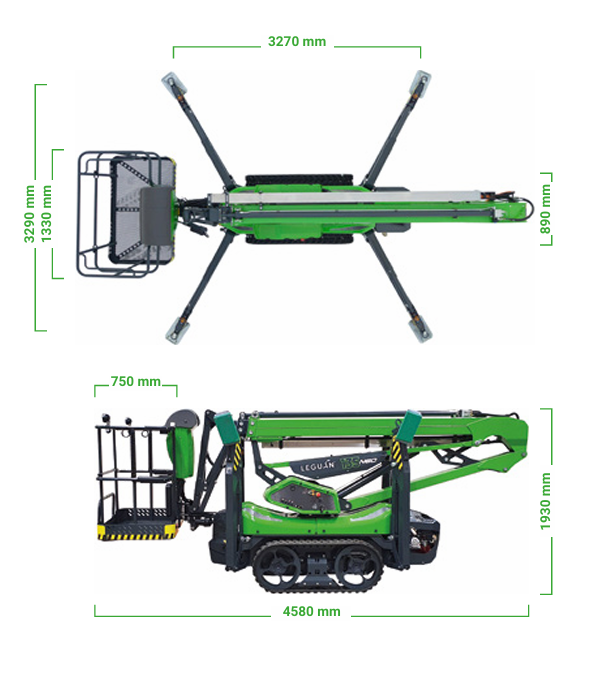

Transport dimensions 4.58 x 1.33 x 1.93 m
Platform dimensions 1.33 x 0.75 m
Rotation of the platform 80º (±40º)
Slewing 360º
Gradeability 40% (22º)
Max. slope for outriggers 21% (12º)
Max drive speed 2.5 km/h
Total weight 1650 Kg
