Spiderlift CMC LC S20

(A standard in every rental fleet)

Honda iGX390 petrol engine; Hydraulically adjustable tracks in width; Black rubber tracks; Basket rotation +/-90°; Two-man basket 140x70x110 cm equipped with quick-release system and wheels; 200 Bar air/ water hose in the basket; 230V/120V/110V and 12V electrical socket in the basket; Protective covers for outrigger cylinders; Display with error code detection; Proportional hydraulic controls; Proportional travel mode by radio remote control; Lifting hooks; Fixing points for transport; Triple travel speed; Automatic outriggers leveling; Standard painting (RAL 3000); 24-months warranty S20 19,9 m 15 m (see warranty condition).

We reserve the right to make technical alterations.

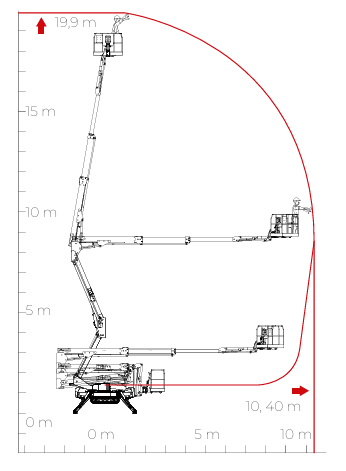

Model CMC LC S20
Maximum working height 19.9 m
Max outreach 10.4 m
Height at floor level 17.9 m
Max load in basket 230 kg
Basket dimensions 1.4 x 0.7 x 1.1 m
Basket rotation +/-90°
Turret rotation +/- 180° (360° continuous)
Total weight 2980 Kg
